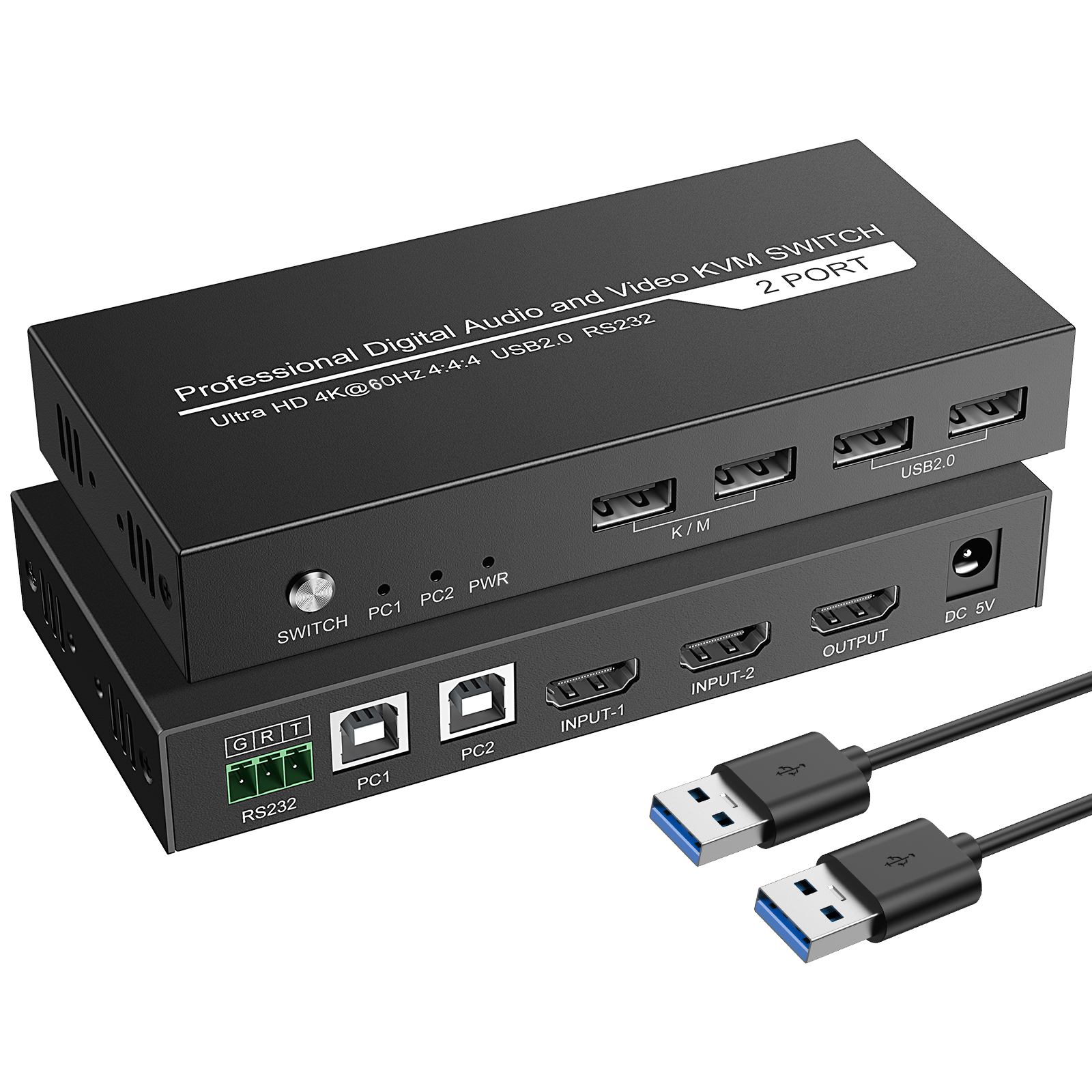

4K60hz HDMI2.0 USB2.0 KVM Switch 2X1 Support hotkey switch and button RS232 control

2X1 HDMI USB2.0 SWITCH 4K@60Hz



1. Main Features

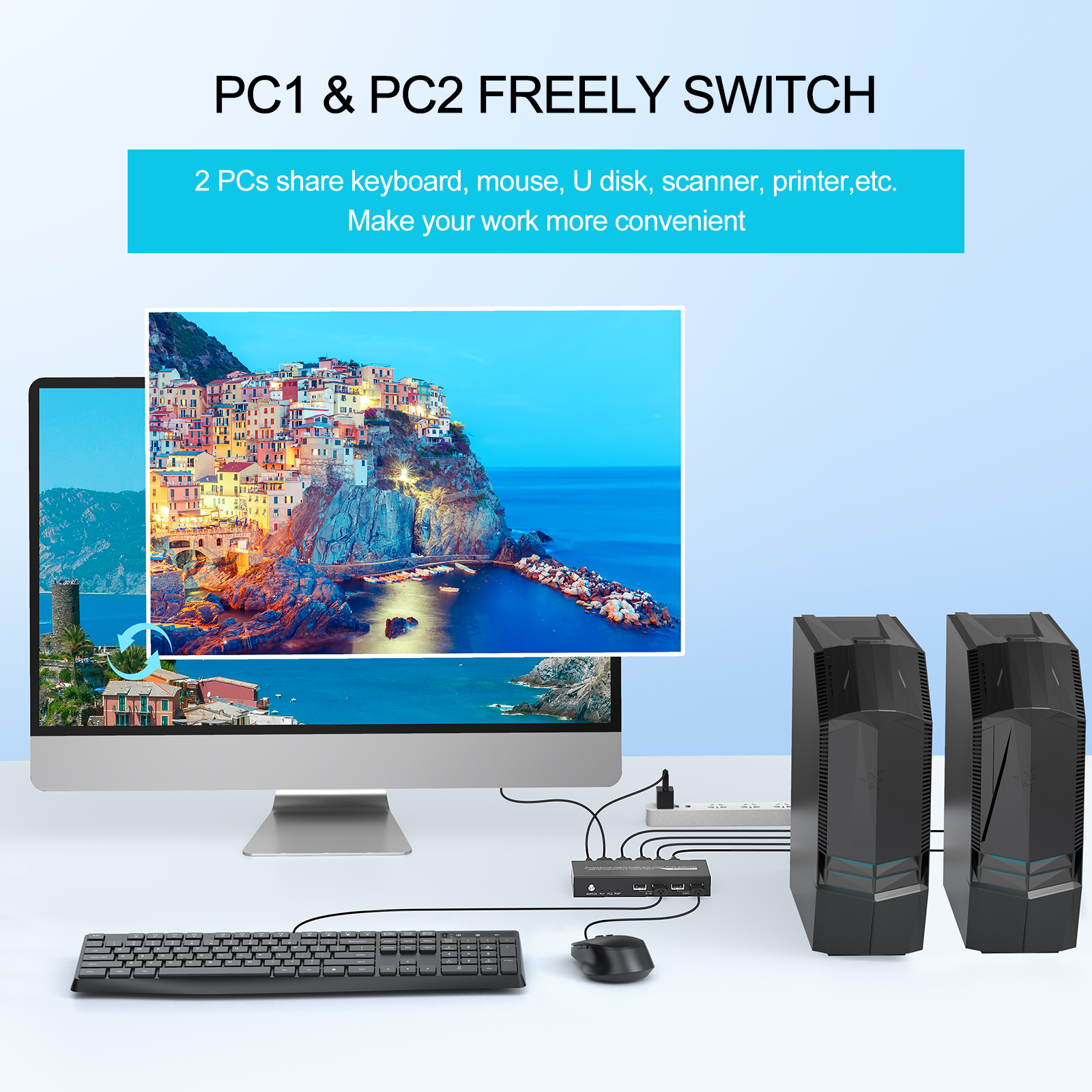

  • 1) Using only 1 set of keyboard, mouse and monitor to control 2 computer devices

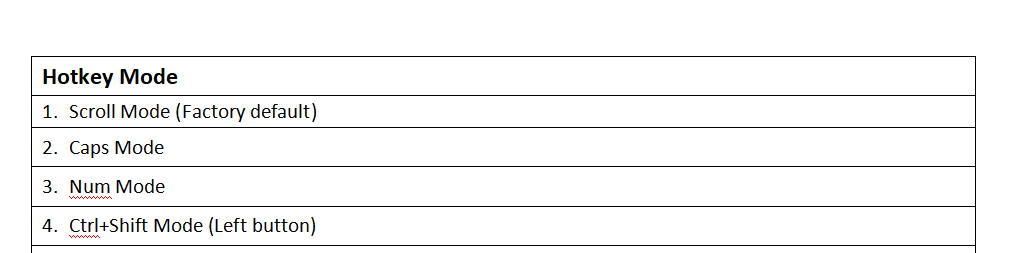

  • 2) Support hot key commands and mouse gesture to switch inputs

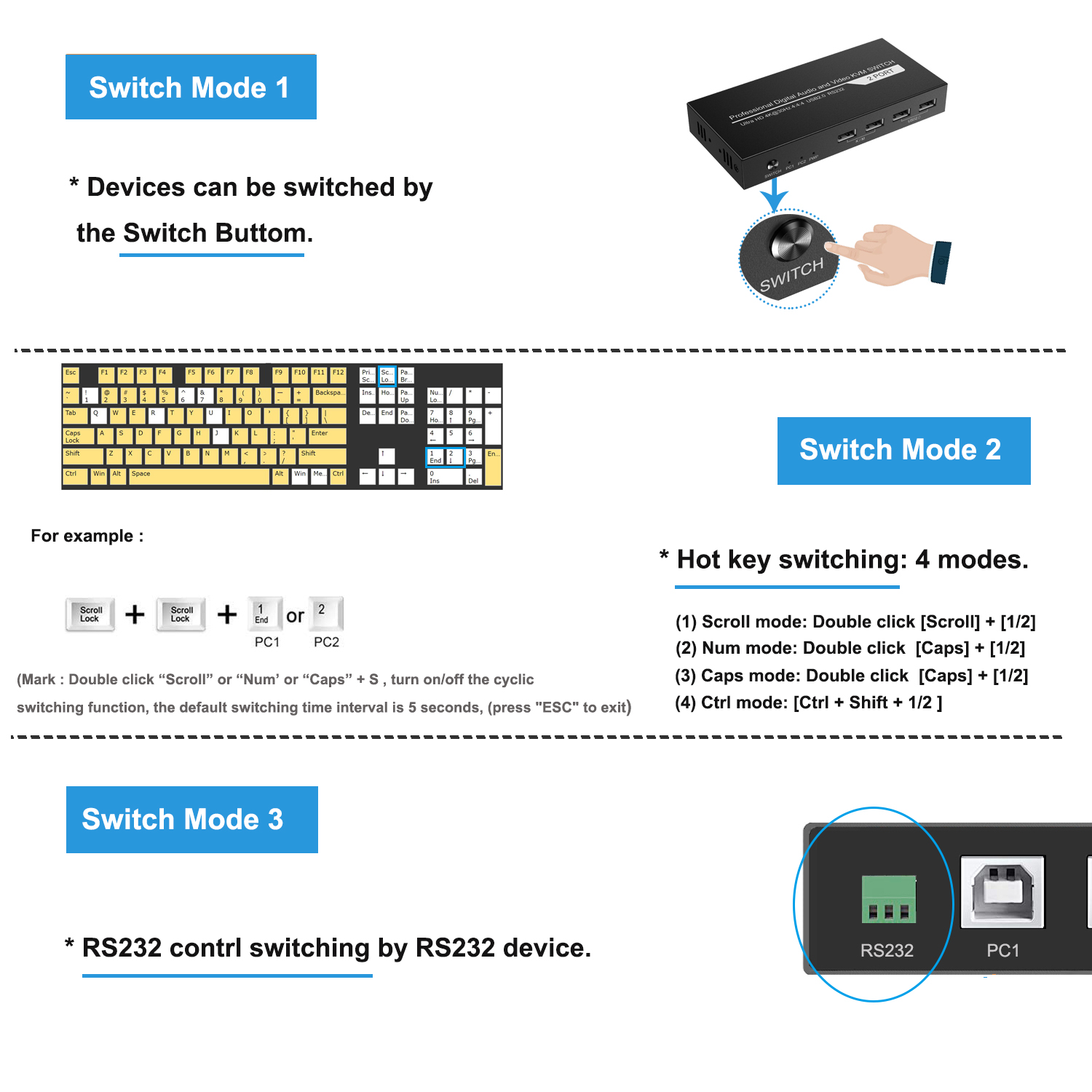

  • 3) Support front panel buttons,RS232, keyboard hot keys to control KVM switch.
  • 4) Available to use keyboard without any delay after switch input sources
  • 5) Support resolution up to 3840*2160@30Hz
  • 6) Compliant with and HDCP 1.4, HDMI1.4
  • 7) Support USB 2.0 for printers, USB drives etc
  • 8) Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system.
  • 9) Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
  • 10) Support HDR 10 and Dolby Vision

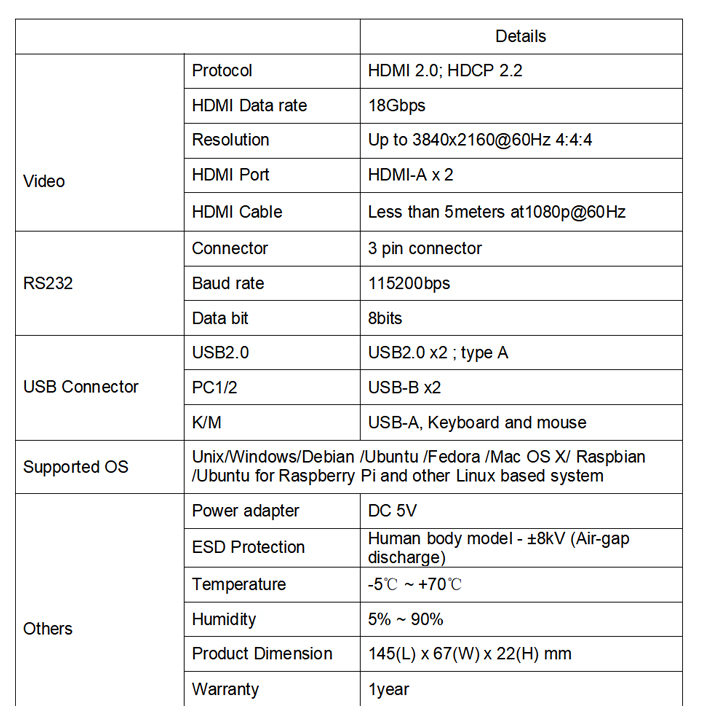

2. Specification

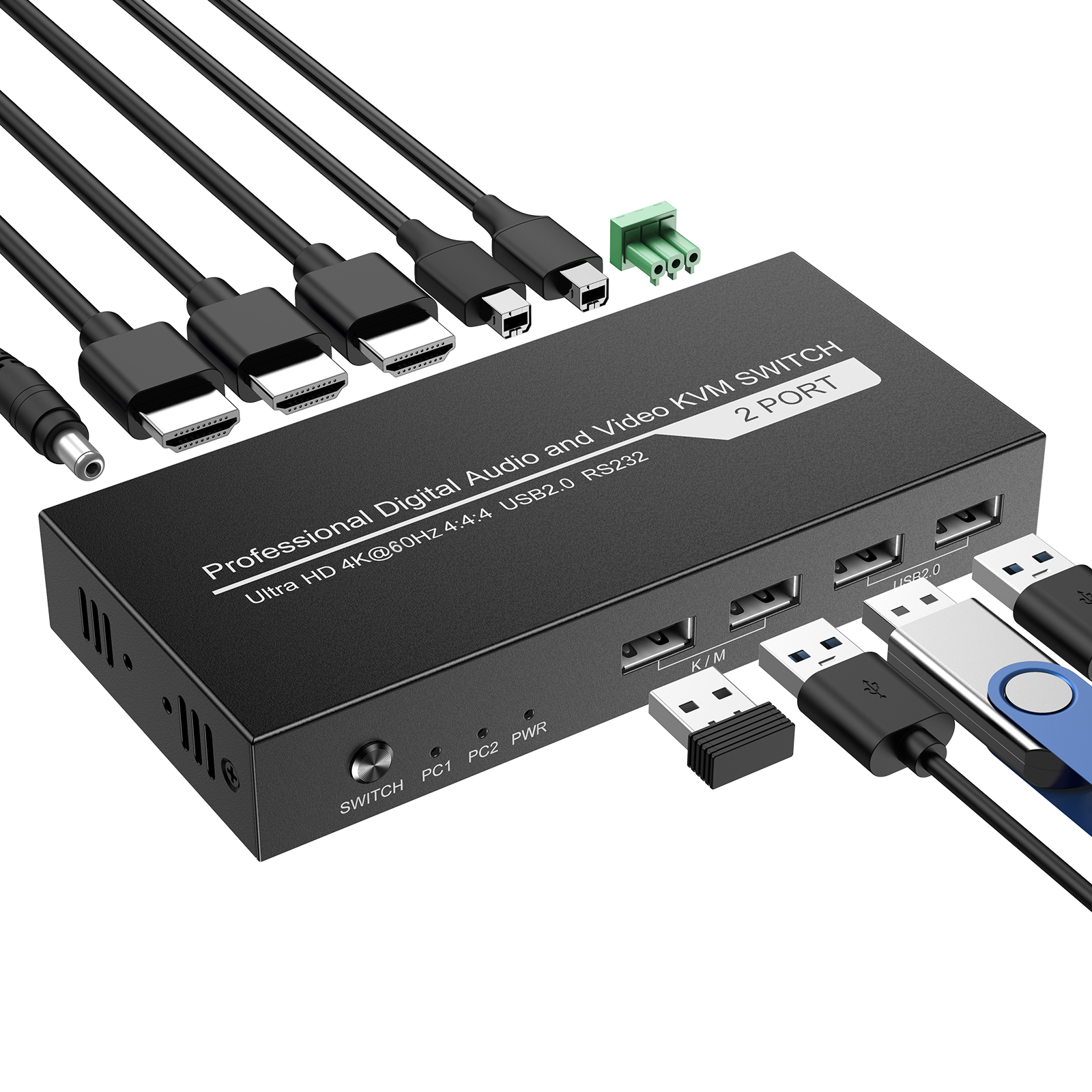

3. Connect Port

4. More Information



产品展示

EK0201HA-AZ-EK0201HB-EK0201HB-4
EK0401HB-EK0401HB-切换方式
EK0201HA-AZ-EK0201HB-EK0201HB-3
EK0201HA-AZ-接口图-3
