4K@30HZ 120meters HDMI KVM Extender 60M With Loopout 【JC-EX607HK】

4K@30HZ HDMI KVM Extender 120M With Loopout

【JC-EX607HK】

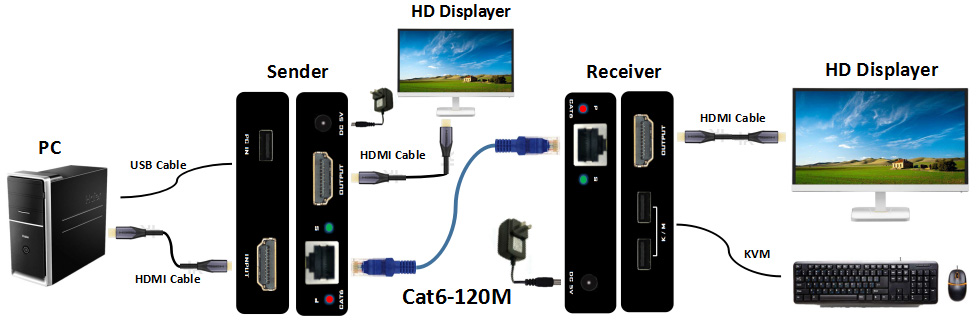

This JC-EX607HK includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 4K@30Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 120 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. Support Keyboard mouse control and local loopout . This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.



Parameter

Description

Video

Standards

HDMI1.4; HDCP 1.4

Maximum pixel clock

225MHz

Maximum data rate

10.2Gbps

Maximum resolution

3840*2160@30Hz (backward-compatible

Connector

HDMI-A

Impedance

100Ω

USB

Interface

PC: Standard USB-A

K/M: Standard USB-A

USB Signal

HID Signal

UTP

Interface

RJ45 (IEEE - 568b connection)

Transmission distance

CAT6-120M

Other

Power supply

The power adapter: DC 5V

Power dissipation

MAX 4W

Temperature

Operating: -5~ +70

Humidity

Operating: 5% ~ 90%

Dimension

82*85*17mm

The warranty

1 year free warranty

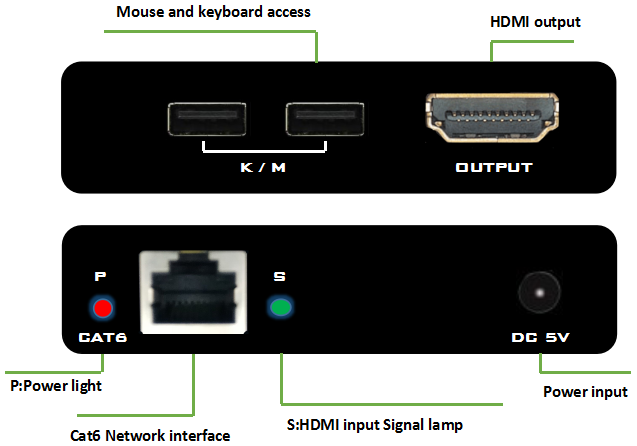

Receiver
